Gill AGX M4 Pole Vault Standards
- In stock, ready to ship

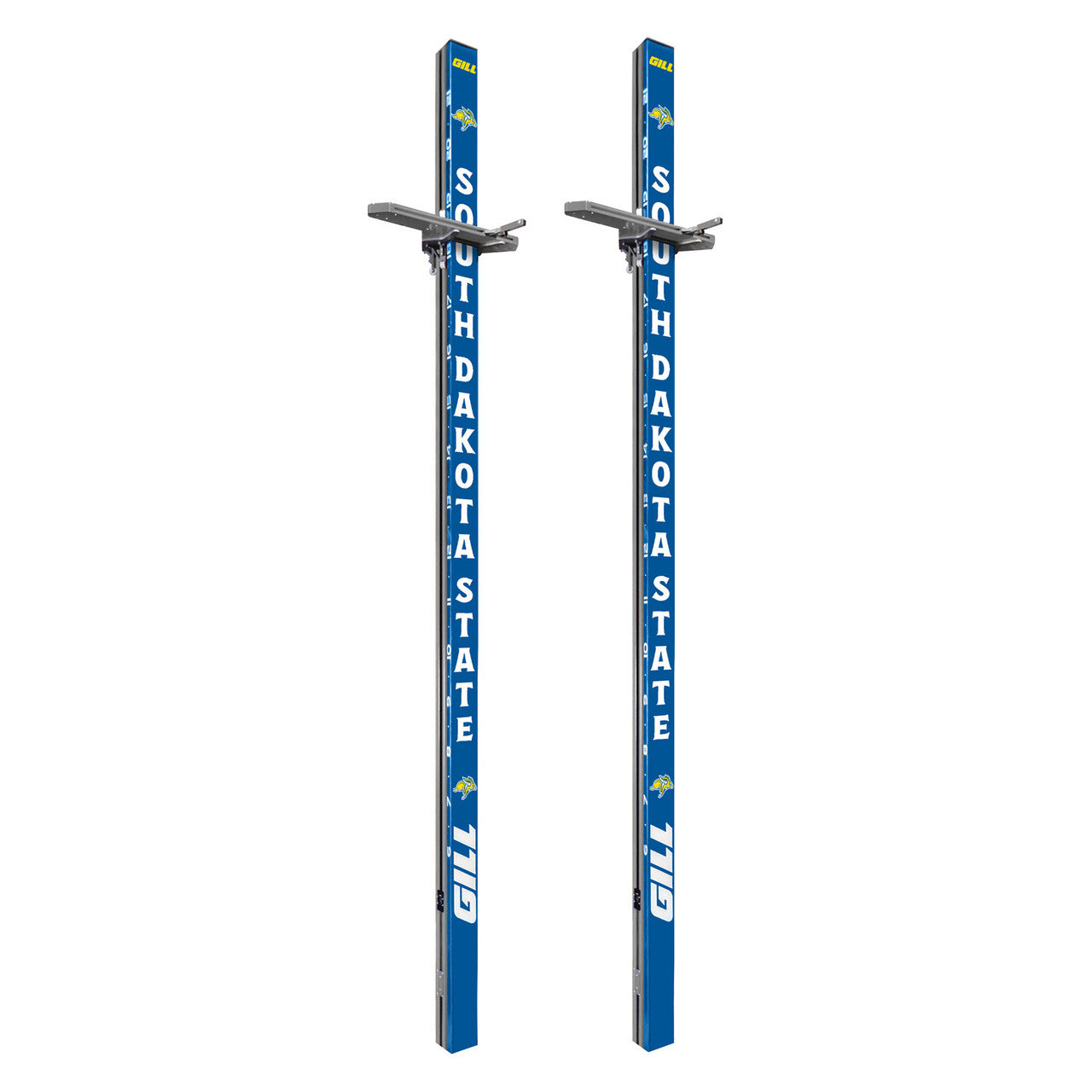

Gill AGX M4 Pole Vault Standards | 6'6" to 21' | World Athletics Certified

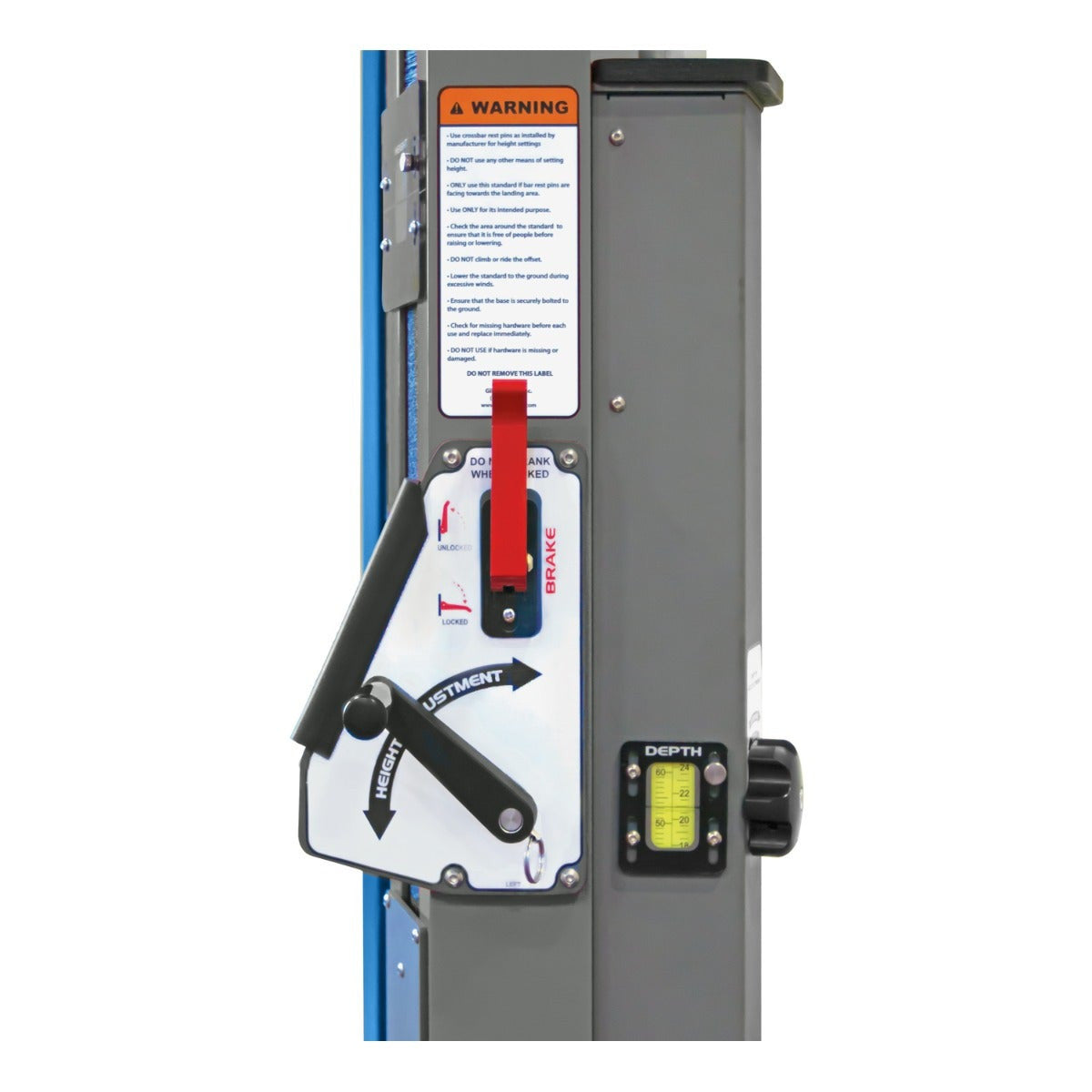

Gill's top of the line pole vault standards. Dual hand cranks set both height and crossbar depth, and the dual lock system switches between Practice Mode for quick bar changes and Competition Mode that locks peg height during jumps. Sold as a pair.
World Athletics certified. Meets NFHS and NCAA specifications. Backed by a 10 year Gill warranty.
Key Specifications
- Height range: 6'6" to 21'
- Crossbar depth: Hand crank adjustment from 0 to 80 cm
- Pin offset width: Customizable from 4.30 m to 4.37 m
- Frame: Aluminum profile frame with dual hand cranks
- Dual lock: Practice Mode and Competition Mode
- Measuring: Internal tape in metric and English

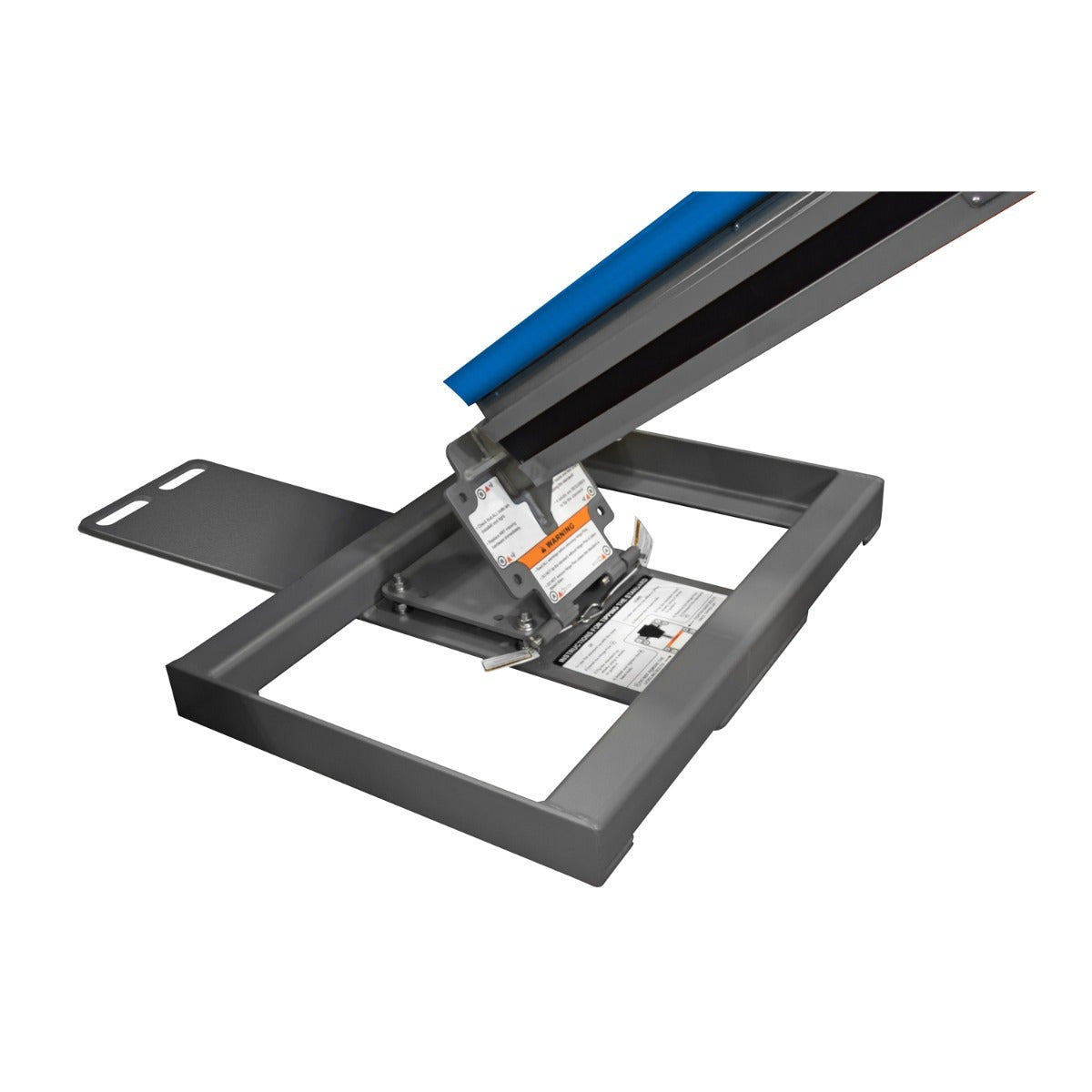

- Base: Steel base with Easy-Port hinge for relocation
- Safety pad: Exclusive customizable 2" pad in your colors and graphics
- Base pads: Designed for Gill 61717 sloped AGX M4 base pads (sold separately)
- Colors: Choose vinyl and paint colors in the order notes, or we will confirm them with you
- Certification: World Athletics certified; meets NFHS and NCAA specifications
- Warranty: 10 year Gill warranty
- Gill model: 740110
🏅 Coach Cappos Recommends
"These are the standards you see at the biggest meets. Height and depth both move by crank, so officials can set every vaulter's standards quickly and exactly. If you have an AGX M4 pit, these finish the setup."
 |
Coach Scott Cappos |
What customers are saying
"I have used Throws Pro for specific needs and they have been prompt and a great resource. As a coach who is not a throws specialist, they are extremely helpful in selecting products for my athletes at different levels."
— E.E., verified ThrowsPro customer (one of 300+ five-star reviews)
Pole Vault Standards FAQs
Q: Is this a pair?
A: Yes. The AGX M4 standards are sold as a pair.
Q: Do they work with a double front pit?
A: Yes. Add the AGX M4 Additional Bases so you can move the standards to the other end of a double front pit.
Q: Are base pads included?
A: No. They are designed for Gill 61717 sloped AGX M4 base pads, sold separately. AGX standard carts are also available for moving and storage.
Q: How do they ship?
A: They are made to order and ship freight from Gill. Contact us for lead time and a freight quote.
Recommended For
✔️ NCAA Division I programs
✔️ National and international championship venues
✔️ Pairing with the AGX M4 pole vault pit
Order Now
Gill pole vault standards ship freight directly from Gill Athletics. Contact us at sales@throwspro.com for current lead time, a freight quote, or help matching standards to your pit. School purchase orders welcome.
