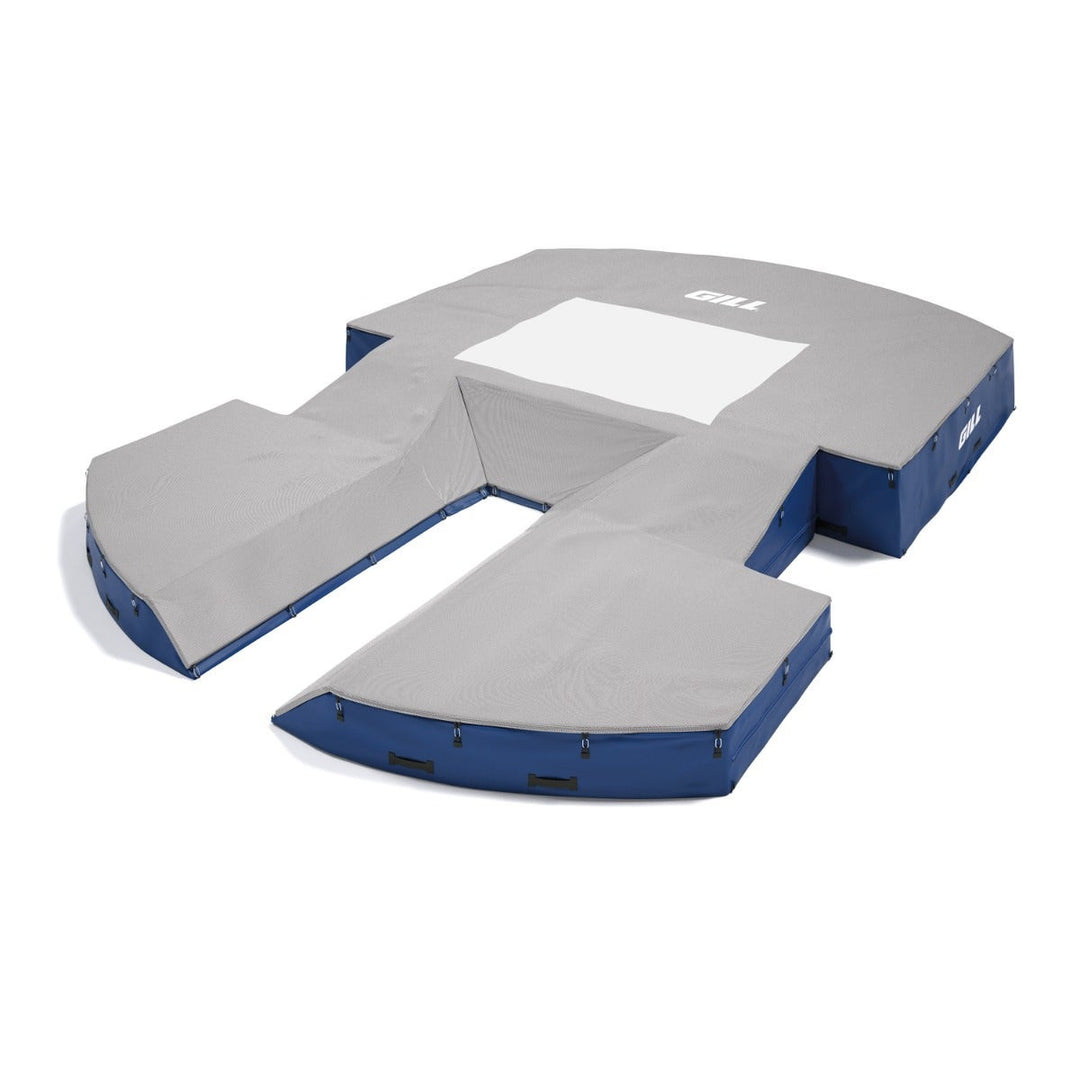

Gill AGX M4 Pole Vault Landing System (21'6" x 31'2" x 32")

Gill AGX M4 Pole Vault Pit | 21'6" x 31'2" x 32" | World Athletics, NCAA and NFHS Legal

The AGX M4 is Gill's largest single front pole vault landing system. At 31'2" long with 21' of landing area behind the vault box, it is built for elite vaulters and championship venues, and it meets World Athletics, NCAA and NFHS specifications.

Meets World Athletics, NCAA and NFHS specifications. Backed by a 12 year Gill warranty.

Key Specifications

• Size: 21'6" x 31'2" x 32" (6.55m x 9.50m x 0.81m)
• Top pad: 2" reversible edge-to-edge top pad
• Landing area behind box: 21'
• Certification: Meets World Athletics, NCAA and NFHS specifications
• Warranty: 12 year Gill warranty
• Gill model: 66817

🏅 Coach Cappos Recommends

"This is the pit you see at championship venues. If you are building a facility to host the biggest meets or training vaulters at the highest level, the AGX M4 gives them the most landing area Gill makes in a single front pit."

Coach Scott Cappos Big Ten Coach for 25 Years University of Iowa University of Nebraska

Top Pad Construction

• Edge-to-edge top pad: Covers the full surface so spikes never hit the base units and there is no uneven lip at the edges. Longer pit life and safer landings near the sides.
• Tufmesh Plus casing: 17 x 11, 1000 denier mesh that stands up to daily spike traffic.
• 2" Duralife foam: Soft, durable landing surface.
• V-Loop vinyl straps: Spread the landing force evenly so seams are not torn apart over time.
• Reversible: Flip the top pad to extend its life.
• Side carabiner connection: The top pad clips to the base on the sides, so there are no buckles or straps on the landing surface.

Vinyl Base Units

• All vinyl base: Keeps water out of the foam far better than old mesh top bases.
• Interchangeable, reversible sections: Rotate units to spread wear and add years to the pit.
• Quadruple layer Duralife foam: 25% softer than competing pits while keeping the firmness a safe landing needs.
• Dual coated vinyl: 1000 x 1000 denier polyester bonded on both sides with 18 oz knife-coated PVC. Resists delamination and weighs less than other casings.
• Triple stitched: 210 bonded polyester thread built for high volume practice.
• Optimal pit entry angle: Designed around an ASTM approved vault box collar so the front slant stays vaulter friendly.
• Grip Strip fastening: Keeps the base sections working as one unit season after season.
• Compress-Pack shipping: Ships compressed to cut freight volume and cost, then restores to full size after unpacking.

Colors and Graphics

Choose from over 100 vinyl casing and top pad color combinations to match your school colors. Add your vinyl and top pad colors in the order notes, or we will contact you to confirm them before the pit goes into production. Custom top pad and weather cover graphics are available. Ask us for a quote.

Pole Vault Pit FAQs

Q: Is the AGX M4 World Athletics legal?
A: Yes. It meets World Athletics, NCAA and NFHS specifications.

Q: Is there a double front version?
A: Yes. The AGX M4 Double Front (21'6" x 44'2" x 32") lets you vault from either end.

Q: Can I pick my school colors?
A: Yes. Choose your vinyl casing and top pad colors from over 100 combinations. Add them in the order notes or we will confirm with you before production.

Q: What is the warranty?
A: Gill backs the landing system with a 12 year warranty. If a part fails under normal use and care in the first 12 years, Gill repairs or replaces it.

Q: How does it ship?
A: It is made to order and ships freight, compressed for lower shipping cost. Contact us for lead time and a freight quote to your facility.

Recommended For

✔️ NCAA Division I programs
✔️ Championship and international venues
✔️ Elite and professional training centers

Order Now

Pole vault pits are made to order and ship freight directly from Gill Athletics. Contact us at sales@throwspro.com for current lead time, a freight quote, or help choosing the right size for your facility. School purchase orders welcome.
