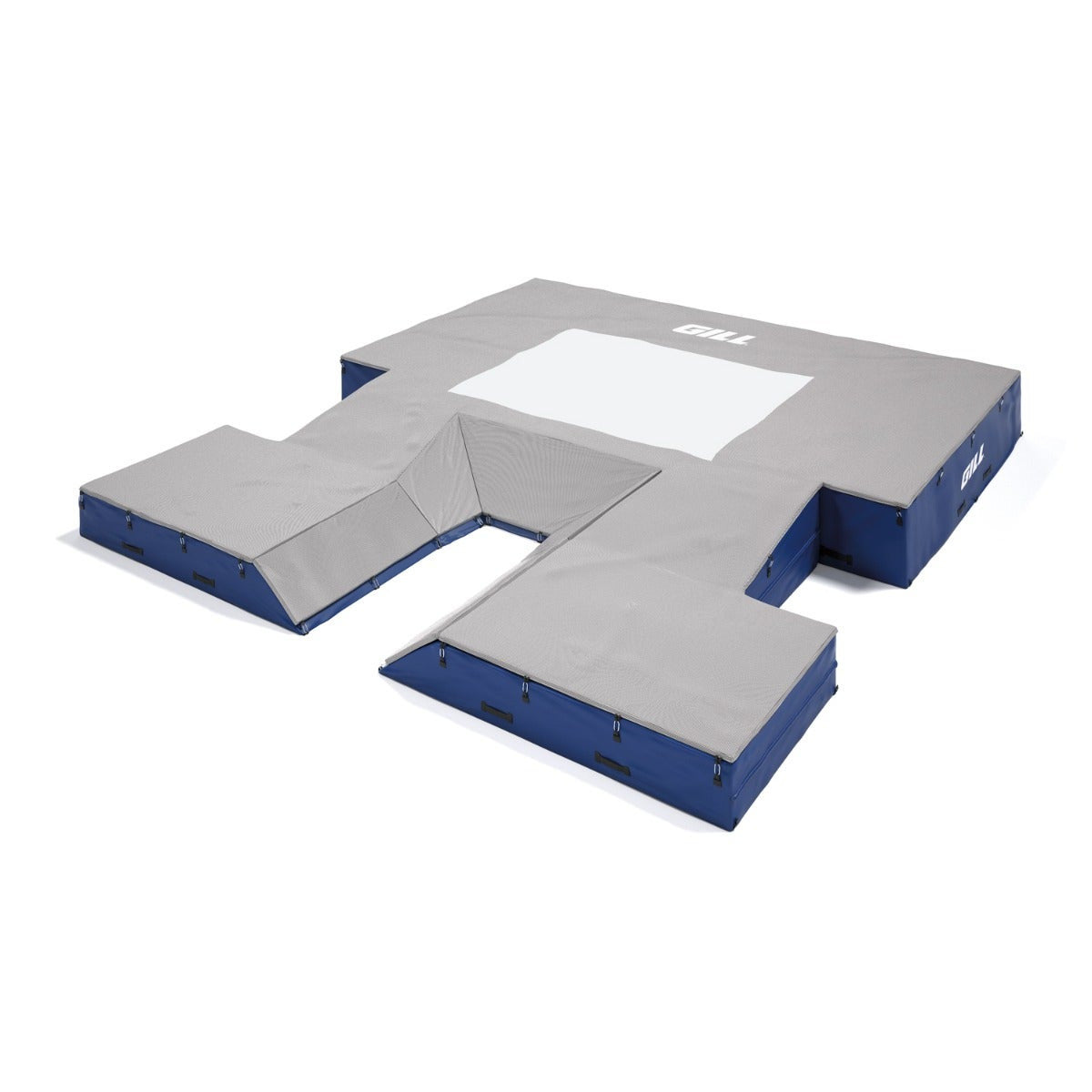

Gill S4 Pole Vault Landing System (21'6" x 24' x 28")

Gill S4 Pole Vault Pit | 21'6" x 24' x 28" | NFHS Legal

The S4 gives high school vaulters a bigger target. At 21'6" wide and 24' long, it adds landing area on every side compared to the S1, with the same all vinyl base, reversible 2" top pad and 12 year warranty.

Meets NFHS specifications. Backed by a 12 year Gill warranty.

Key Specifications

• Size: 21'6" x 24' x 28" (6.55m x 7.32m x 0.71m)
• Top pad: 2" reversible edge-to-edge top pad
• Landing area behind box: 16'7"
• Certification: Meets NFHS specifications
• Warranty: 12 year Gill warranty
• Gill model: 65817

🏅 Coach Cappos Recommends

"Landing area is safety. If you have the room, I would take the S4 over the S1 for a high school program every time. Young vaulters do not always land where you want them to, and the extra width and length gives them margin."

Coach Scott Cappos Big Ten Coach for 25 Years University of Iowa University of Nebraska

Top Pad Construction

• Edge-to-edge top pad: Covers the full surface so spikes never hit the base units and there is no uneven lip at the edges. Longer pit life and safer landings near the sides.
• Tufmesh Plus casing: 17 x 11, 1000 denier mesh that stands up to daily spike traffic.
• 2" Duralife foam: Soft, durable landing surface.
• V-Loop vinyl straps: Spread the landing force evenly so seams are not torn apart over time.
• Reversible: Flip the top pad to extend its life.
• Side carabiner connection: The top pad clips to the base on the sides, so there are no buckles or straps on the landing surface.

Vinyl Base Units

• All vinyl base: Keeps water out of the foam far better than old mesh top bases.
• Interchangeable, reversible sections: Rotate units to spread wear and add years to the pit.
• Quadruple layer Duralife foam: 25% softer than competing pits while keeping the firmness a safe landing needs.
• Dual coated vinyl: 1000 x 1000 denier polyester bonded on both sides with 18 oz knife-coated PVC. Resists delamination and weighs less than other casings.
• Triple stitched: 210 bonded polyester thread built for high volume practice.
• Optimal pit entry angle: Designed around an ASTM approved vault box collar so the front slant stays vaulter friendly.
• Grip Strip fastening: Keeps the base sections working as one unit season after season.
• Compress-Pack shipping: Ships compressed to cut freight volume and cost, then restores to full size after unpacking.

Colors and Graphics

Choose from over 100 vinyl casing and top pad color combinations to match your school colors. Add your vinyl and top pad colors in the order notes, or we will contact you to confirm them before the pit goes into production. Custom top pad and weather cover graphics are available. Ask us for a quote.

Pole Vault Pit FAQs

Q: Is the S4 legal for high school competition?
A: Yes. It meets NFHS specifications.

Q: S4 or G1?
A: The S4 is 28" tall and meets NFHS. The G series is 32" tall and meets NCAA as well. If you host college meets or have vaulters heading to the next level, look at the G1 or G4.

Q: Can I pick my school colors?
A: Yes. Choose your vinyl casing and top pad colors from over 100 combinations. Add them in the order notes or we will confirm with you before production.

Q: What is the warranty?
A: Gill backs the landing system with a 12 year warranty. If a part fails under normal use and care in the first 12 years, Gill repairs or replaces it.

Q: How does it ship?
A: It is made to order and ships freight, compressed for lower shipping cost. Contact us for lead time and a freight quote to your facility.

Recommended For

✔️ High school programs
✔️ Programs with multiple vaulters
✔️ Schools that host invitationals and conference meets

Order Now

Pole vault pits are made to order and ship freight directly from Gill Athletics. Contact us at sales@throwspro.com for current lead time, a freight quote, or help choosing the right size for your facility. School purchase orders welcome.
